At SIGCOMM’25, I was asked on two occasions how to test verifier changes on Cilium’s BPF programs. That has been a recurring ask for a while and it makes a lot of sense to want to do this. Cilium probably still has the largest open sourced BPF programs out there. There are many heuristics in the Linux verifier, most notably around state pruning. Thus, changes to the verifier can have hard to predict impacts, on the ability to verify programs or on the complexity, i.e., the number of instructions the verifier has to walk to analyze a program. Testing your changes on Cilium is one way to evaluate them.

Testing verifier changes on Cilium is also a well-established practice of the kernel community1. Yet, it can be difficult to know how to test on Cilium. Its BPF programs can be compiled with many different configurations and only a few really maximize the size and complexity.

In this post, I’ll show how to run Cilium’s complexity test suite on your patched kernel. The complexity test suite is built to try and maximize the complexity, in an effort to spot complexity issues before they reach users.

We’ll start by building a test VM with your changes, but you can also skip to Run the Complexity Tests if you prefer to boot on your patched kernel directly. The VM is mostly useful if you don’t want to boot on your kernel or if you want to run the full Cilium end-to-end tests.


Download Repositories

WORKDIR=/tmp
git clone --depth 1 -b v1.19.0-pre.0 https://github.com/cilium/cilium
# Only needed if building the test VM:
git clone --depth 1 https://github.com/cilium/little-vm-helper-images
git clone --depth 1 -b v0.0.26 https://github.com/cilium/little-vm-helper


Cilium Test VM

This part is only required if you don’t want to boot on your patched kernel, or if you want to run Cilium’s end-to-end tests afterward.

Build the VM

We will build the VM image using Little VM Helper (LVH), the tool used to run end-to-end tests in Cilium’s CI.

cd $WORKDIR/little-vm-helper-images/
vim _data/kernels.json

We first need to edit the configuration to add our patched kernel. Note how the URL follows the format your_repo_url?depth=1#your_branch.

{
  "name": "my-kernel",
  "url": "https://github.com/pchaigno/linux?depth=1#change-pruning-point-heuristic"
},

With that, we can build the kernel and extract the VM image:

KERNEL_VERSIONS="my-kernel" make complexity-test
c=$(docker create quay.io/lvh-images/complexity-test-ci:my-kernel)
docker cp $c:/data/images/complexity-test_my-kernel.qcow2.zst /tmp
zstd --decompress /tmp/complexity-test_my-kernel.qcow2.zst

If you want to compare complexity numbers between different kernel versions, you may want to build multiple kernels at once. For example, if your patch is based on bpf-next, you may want to pass run:

KERNEL_VERSIONS="bpf-next my-kernel" make complexity-test

Boot and Prepare the VM

We can then run the VM image using LVH:

cd $WORKDIR/little-vm-helper/
make
./lvh run --host-mount ~/cilium --image /tmp/complexity-test_my-kernel.qcow2

Username is root. There’s no password.

Finally, we need to extract the LLVM version used by Cilium to compile its BPF programs:

/host/contrib/scripts/extract-llvm.sh /tmp/llvm
mv /tmp/llvm/usr/local/bin/{clang,llc} /bin/
rm -r /tmp/llvm
mkdir -p /host/datapath-verifier


Cilium Complexity Tests

Run the Complexity Tests

If you’re running in the LVH VM, the following command will execute Cilium’s complexity test suite:

cd /host/
export PRIVILEGED_TESTS=true
go test -v -timeout=20m ./pkg/datapath/loader -run "TestPrivilegedVerifier" \
  --cilium-base-path /host --result-dir /host/datapath-verifier \
  --kernel-version netnext

/host points to the base of the Cilium clone. If running this on the host (if you booted on your patched kernel), you’ll need to modify /host in the command to point to the Cilium clone.

The argument --kernel-version points to the set of configurations used by Cilium and, unless testing an old kernel (<= v6.1), it should remain set to netnext.

Parse the Results

Results are found in the datapath-verifier/ directory in the Cilium clone and take the form of a JSON file.

cd $WORKDIR/cilium/datapath-verifier/
cat verifier-complexity.json

[
  {
    "collection": "lxc",
    "build": "5",
    "load": "0",
    "program": "cil_from_container",
    "insns_processed": 748,
    "insns_limit": 1000000,
    "max_states_per_insn": 5,
    "total_states": 57,
    "peak_states": 57,
    "mark_read": 13,
    "verification_time_microseconds": 306,
    "stack_depth": 64
  },
  ...

collection refers to a set of BPF programs (typically one of Cilium’s bpf/bpf_[collection].c files). program is the name of the BPF program being tested. build and load are the IDs of the build-time and load-time configurations used for this test case. The combination of program, build, and load can serve as an index for the complexity results.

insns_processed is the number of instructions the verifier had to walk to verify the program. It’s typically referred to as the complexity of the program for that kernel. insns_limit is the complexity limit for that kernel (1M on recent kernels). verification_time_microseconds is the total verification time in microseconds.

max_states_per_insn is the maximum number of verifier states the verifier attached to an instruction in the program. A max_states_per_insn of 5 means that there is at least one instruction in the program for which the verifier saved 5 different states (for different paths). total_states is the number of verifier states that were allocated during verification. Given states can also be freed during the analysis, peak_states gives the maximum number of verifier states that existed at any point in time; it is closely related to the verifier’s memory consumption.

mark_read is the size of the longest parentage chain the verifier had to walk for liveness tracking. stack_depth is the maximum stack depth used by the BPF program.

Comparing Results Across Versions

The largest BPF programs are typically found in the lxc and host collections.

The following command can be used to compare results between different kernels. It will emit a large number of plots, with comparisons for each program and each configuration.

cd $WORKDIR/cilium/
python ./contrib/scripts/verifier_diff.py \
  datapath-verifier/verifier-complexity-bpf-next.json \
  datapath-verifier/verifier-complexity-my-kernel.json

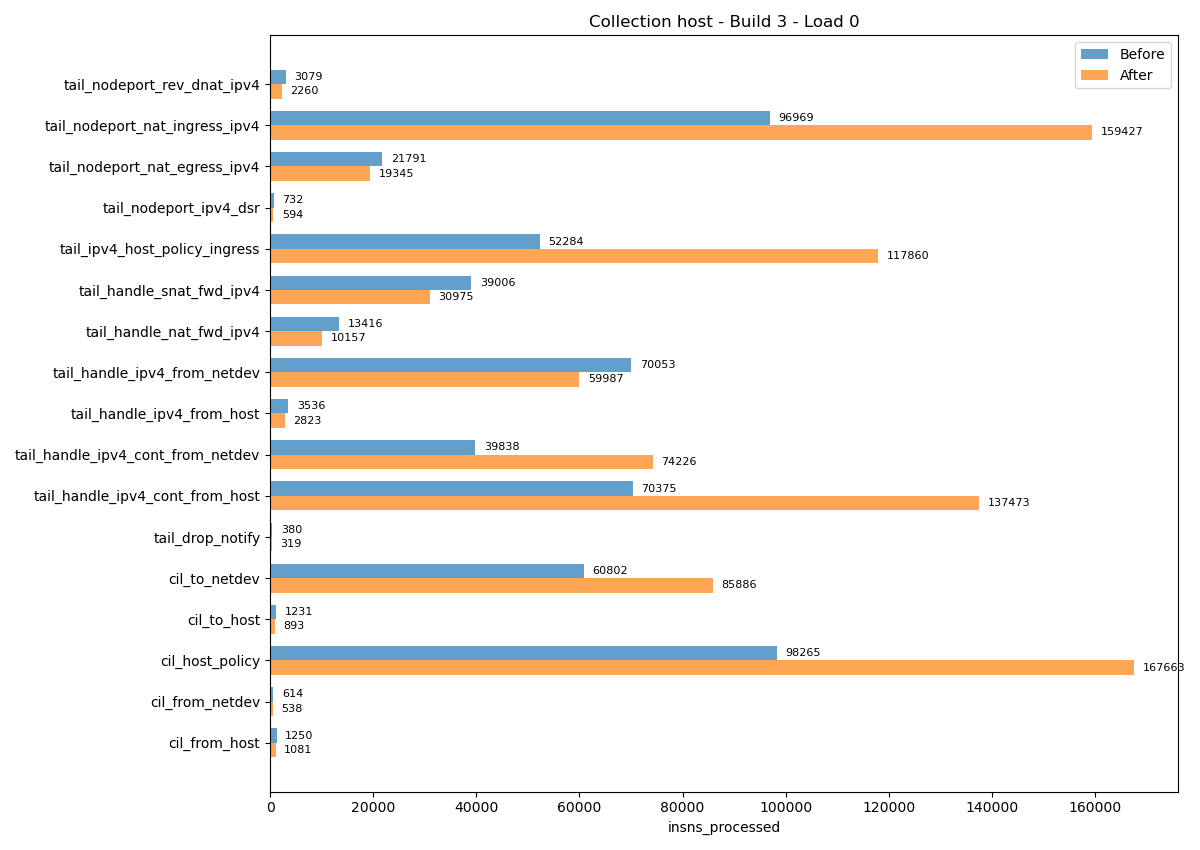

The following image shows an example plot, for the patched kernel I’m using, in the case of the bpf_host Cilium program.


Run Cilium’s End-to-End Tests

You can also use LVH images with your patched kernel to run end-to-end tests in Cilium’s CI. To that end, you will need to build additional images:

KERNEL_VERSIONS="my-kernel" make kind

This command will create a new image quay.io/lvh-images/kind-ci:my-kernel@sha256:xxxxxxx. You will need to retag and push this image to a Docker repository.

To have Cilium’s CI run your kernel, we just need a few changes. First, we have to edit the kernel: lines in .github/actions/e2e/configs.yaml and .github/actions/e2e/ipsec_configs.yaml to refer to your kernel (i.e., kernel: "my-kernel"). Then, apply the following diff, with whatever Docker repository you used (docker.io/pchaigno in my case):

diff --git a/.github/actions/lvh-kind/action.yaml b/.github/actions/lvh-kind/action.yaml
index bc2fefcb12..b34cfe88eb 100644
--- a/.github/actions/lvh-kind/action.yaml
+++ b/.github/actions/lvh-kind/action.yaml
@@ -55,9 +55,11 @@ runs:
   using: composite
   steps:
     - name: Provision LVH VMs
-      uses: cilium/little-vm-helper@9c1f3a549af06e213863d034c13ba1c5d1e3c667 # v0.0.26
+      uses: cilium/little-vm-helper@4dd358e5d05d410d6cc96a728d601f2e2c4302fa
       with:
         test-name: $
+        image-repo: 'docker.io/pchaigno'
+        image: 'kind-ci'
         image-version: $
         images-folder-parent: "/tmp"
         host-mount: ./
@@ -78,7 +80,7 @@ runs:
         lvh: 'true'

     - name: Create K8s cluster
-      uses: cilium/little-vm-helper@9c1f3a549af06e213863d034c13ba1c5d1e3c667 # v0.0.26
+      uses: cilium/little-vm-helper@4dd358e5d05d410d6cc96a728d601f2e2c4302fa
       with:
         provision: 'false'
         cmd: |

Commit, open a draft pull request on Cilium’s repositories, and ping your favorite Cilium committer to trigger the end-to-end tests.


Thanks to Simone Magnani for the verifier_diff.py script and to all my colleagues who contributed to our complexity test suite over time!


  1. See examples of using Cilium to test the complexity impact of verifier changes in commits 18a433b62061, 6715df8d5d24, a3ce685dd01a, and 979d63d50c0c. ↩
